LAVAPEN X
100 bar high-pressure electric closed-cabin metal washer
Washing Area
Up to 120 x 80 x H45 cm
Loading Capacity
70 kg
Maximum Temperature
Up to 60 °C
Version
X (100 bar pressure, heating up to 60°C)
Controls
Electromechanical
Tanks
Single tank up to 90 L
Power Supply
Single-phase
Detergent
SAX, CLEAN POWER, SAX Q, 545, ADD-SGX, SG233A, NEW 105, XL10, PROMETAL, PROTEK-IN, ADD-SGX, DROPAWAY, ASH, PUL-T
Features
Details
Accessories
Models
What is included in all LAVAPEN X models
- Assisted door closure with gas springs and closing hook
- Black latex gloves length 660 mm (oil and grease repellent, good mechanical and chemical resistance)
- Tank edge gasket
- Structure and sheets in contact with the liquid in AISI 304 stainless steel
- Special washing lance with pressurized jet and non-slip grip
- Minimum level control
- LED light for internal lighting of the washing area
- Dispensed pressure control gauge
- Safety limit switch on lid opening
- Pedal-activated washing
- Adjustable feet
- Closing door with sleeves and tempered glass
- Compressed air blowing gun
- Manually adjustable washing pressure
- IP65 electrical system, electromechanical controls
- Liquid heating with stainless steel electric resistance
- Internal weld bleaching
- Flexible pump suction and delivery pipes (easy maintenance)
- Drain valves for tank emptying
- Manual valve for surface liquid discharge (neat oil)
Lavapen parts washers allow manual washing of parts inside a closed and totally safe cabin.
The operator places the parts inside the machine, closes the lid, inserts their arms into the gloves, and by pressing a pedal activates the spray pump. Using the special spray nozzle with a non-slip grip, the operator is able to perfectly wash all holes and hidden parts of the workpieces.
There are 2 different machine sizes and 3 different types of operation available:
- Version P: totally pneumatic for use with particularly aggressive products
- Version C: electric power supply and water-based liquid heated to 60° and with a maximum washing pressure of 8 bar
Version X: electric power supply and water-based liquid heated to 60° and with washing pressure up to 100 bar
Lavapen parts washers can be equipped, on request, with an internal compressed air blowing gun.
Main operational benefits:
- Manual high-pressure washing up to 100 bar
- Closed cabin with front gloves for safe operation
- Effective cleaning of complex surfaces, holes, and hidden parts
- Dedicated high-pressure pump
- Liquid heatable up to 60°C
- Adjustable pressure
- Single-phase electrical power supply
- Direct operator process control
Technical positioning:
- High-pressure spray manual parts washer
- Designed for intensive work on mechanical parts
- Solution for production contexts requiring high washing power
What can be added as an accessory
- Stainless steel cartridge filter (10/25/50 micron)
- Immersed magnet for ferritic or grinding dust separation
- High-pressure washing gun
- Weekly heating ignition programming
- Heating with external resistors, not in contact with the liquid
- Machine equipped with wheels for movement
- Increased load capacity to 150 kg

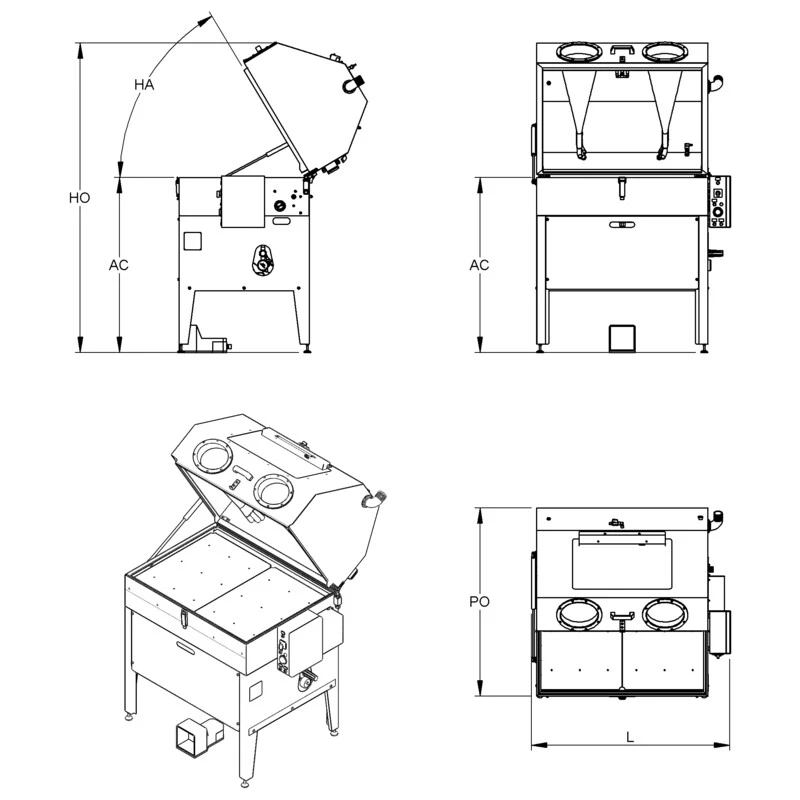

| Model | LP3_X | LP4_X | ||
|---|---|---|---|---|
| Height (H) | 160 cm | 160 cm | ||
| Height with machine open (HO) | 180 cm | 190 cm | ||
| Loading Height (AC) | 100 cm | 100 cm | ||
| Washing Height (HL) | 45 cm | 45 cm | ||
| Opening angle (HA) | 60° | 60° | ||
| Washing Area (AL) | 95 x 70 cm | 120 x 80 cm | ||
| Width (W) | 120 cm | 145 cm | ||
| Weight (W) | 115 kg | 130 kg | ||
| Depth (D) | 85 cm | 95 cm | ||
| Open machine depth (PO) | 111 cm | 120 cm | ||
| Noise LT (RU) | 75 dBa | 75 dBa |
