Pneumatic manual action metal washer at low pressure with pneumatic controls

LAVAPEN P OPEN is a manual pneumatic low-pressure parts washer designed for washing small and medium-sized mechanical parts. The treatment is carried out manually by the operator with direct wash management. In the P configuration, the machine is powered exclusively by compressed air and is designed for use with compatible solvents with a flash point higher than > 55°C.

Lavapen line

Request Information

Washing Area

Up to 120 x 80 cm

Loading Capacity

70 kg

Maximum Temperature

Cold

Version

P (pressure 2 bar 5 lt/min, pneumatic)

Controls

Pneumatic

Tanks

Single tank up to 90 L

Power Supply

Pneumatic (2 bar 5 lt/min)

Detergent

Novasol-c

Features

Details

Accessories

Models

What is included in all LAVAPEN P OPEN models

Internal weld bleaching
Pedal-activated washing
Adjustable feet
Compressed air blowing gun
Manually adjustable washing pressure
Special washing lance with pressure jet and non-slip grip
Structure and sheets in contact with the liquid in AISI 304 stainless steel
Flexible pump suction and delivery pipes (easy maintenance)
Special ergonomic washing brush
Drain valves for tank emptying
Manual valve for surface liquid discharge (neat oil)

Main operational benefits:

Direct manual washing
Pneumatic operation
Use with solvents with flash point > 55°C
Completely pneumatic controls
Integrated single tank

Technical positioning:

Low-pressure pneumatic parts washer
Suitable for manual washing of small and medium-sized mechanical parts

What can be added as an accessory

Stainless steel cartridge filter (10/25/50 micron)
Machine equipped with wheels for movement
Increased load capacity to 150 kg

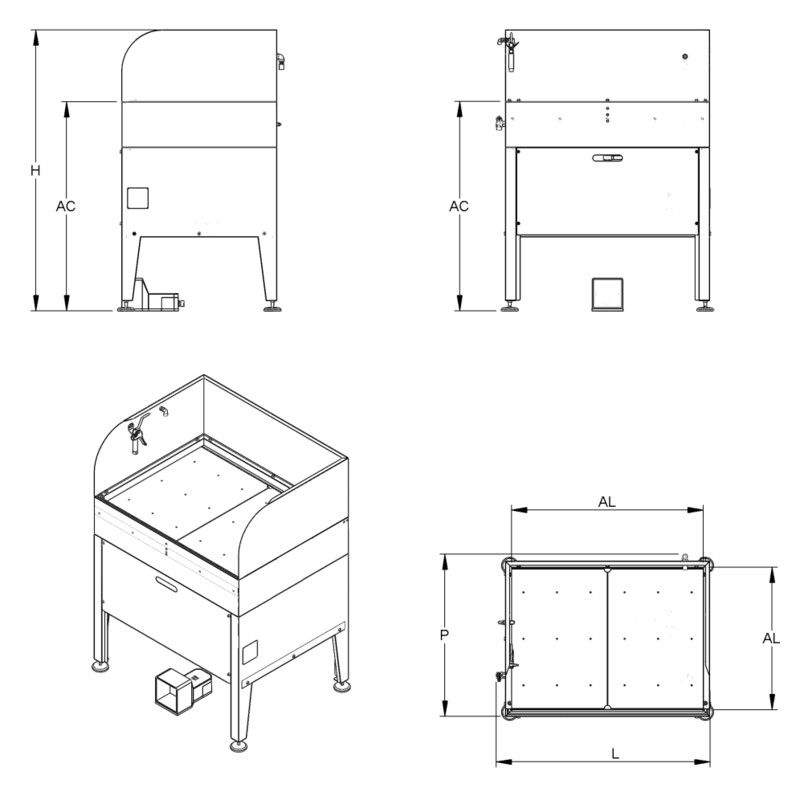

Model	LP3_P_OP	LP4_P_OP
Height (H)	140 cm	140 cm
Loading Height (AC)	100 cm	100 cm
Washing Area (AL)	95 x 70 cm	120 x 80 cm
Width (W)	111 cm	136 cm
Weight (W)	75 kg	90 kg
Depth (D)	82 cm	92 cm
Noise LT (RU)	75 dBa	75 dBa
