P SMALL
Parts washers with rotary basket and electromechanical commands
Washing Area
Up to Ø 78 x H 43 cm
Loading Capacity
100 kg
Maximum Temperature
Up to 60 °C
Version
LT (heating up to 60° C)
Controls
Electromechanical
Tanks
Single tank
Power Supply
Three-phase
Detergent
SAX, CLEAN POWER, SAX Q, 545, ADD-SGX, SG233A, NEW 105, XL10, PROMETAL, PROTEK-IN, ADD-SGX, DROPAWAY, ASH, DEOXY, PUL-T
Features
Details
Accessories
Models
What is included in all P SMALL models
- Expanded metal basket with AISI 304 stainless steel outer edge (P 60)
- Reinforced basket in electro-welded mesh with galvanized steel outer edge (P 80)
- Assisted door closure with gas springs and closing hook
- AISI 304 stainless steel filter on the pump suction
- Tank edge gasket
- Structure and sheets in contact with the liquid in AISI 304 stainless steel
- Minimum level control
- Safety limit switch on lid opening
- Stainless steel electric pump with special seals
- IP65 electrical system, electromechanical controls
- Liquid heating with stainless steel electric resistance
- Mechanical rotation of the basket via gear motor
- Internal weld bleaching
- Flexible pump suction and delivery pipes (easy maintenance)

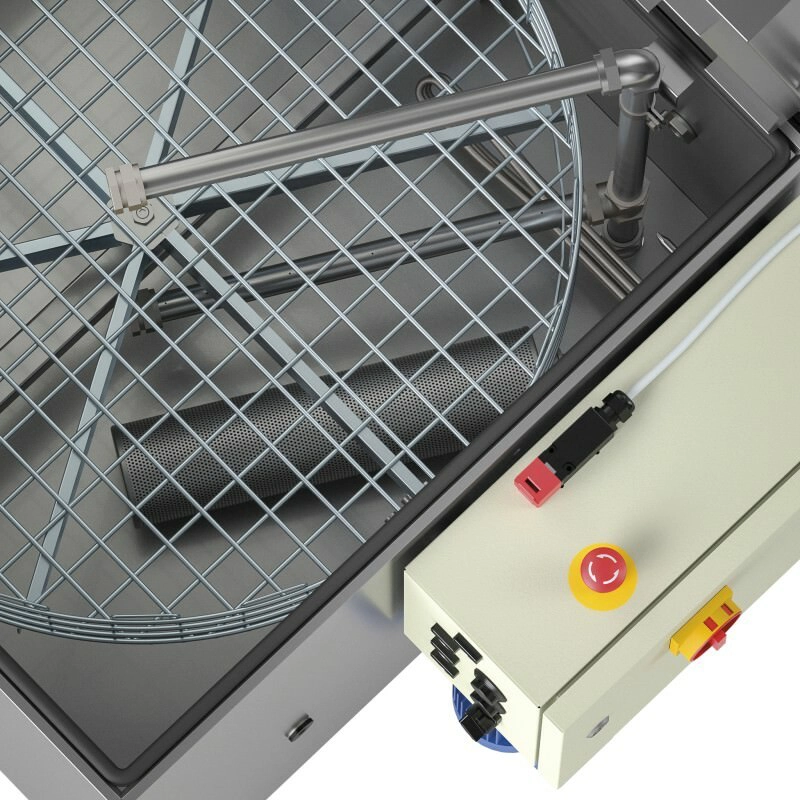

- Washing pipes in AISI 304 stainless steel with professional stainless steel blade nozzles
- Drain valves for tank emptying
- Manual valve for water filling

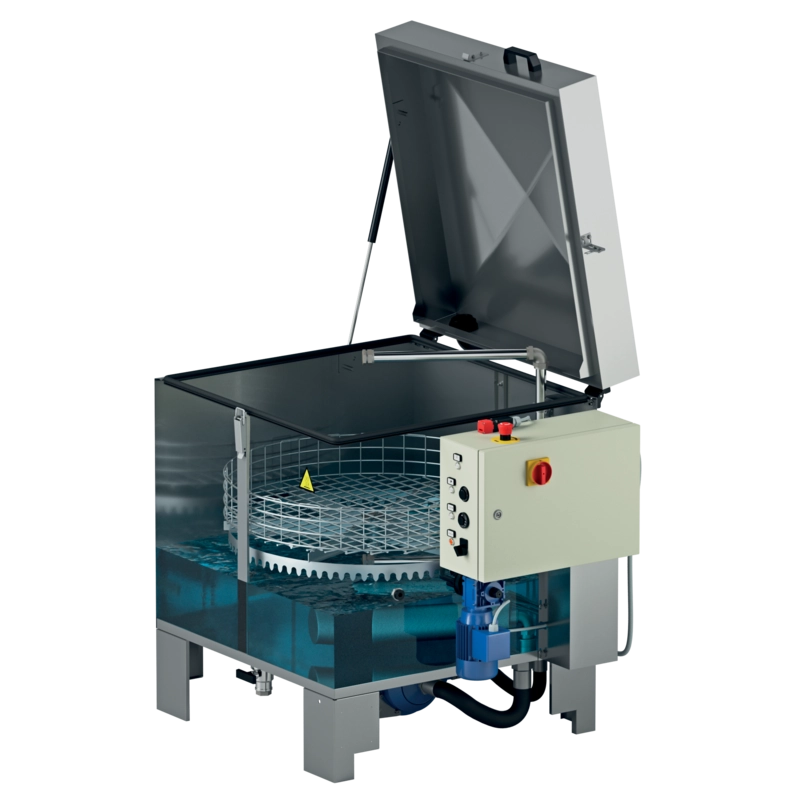

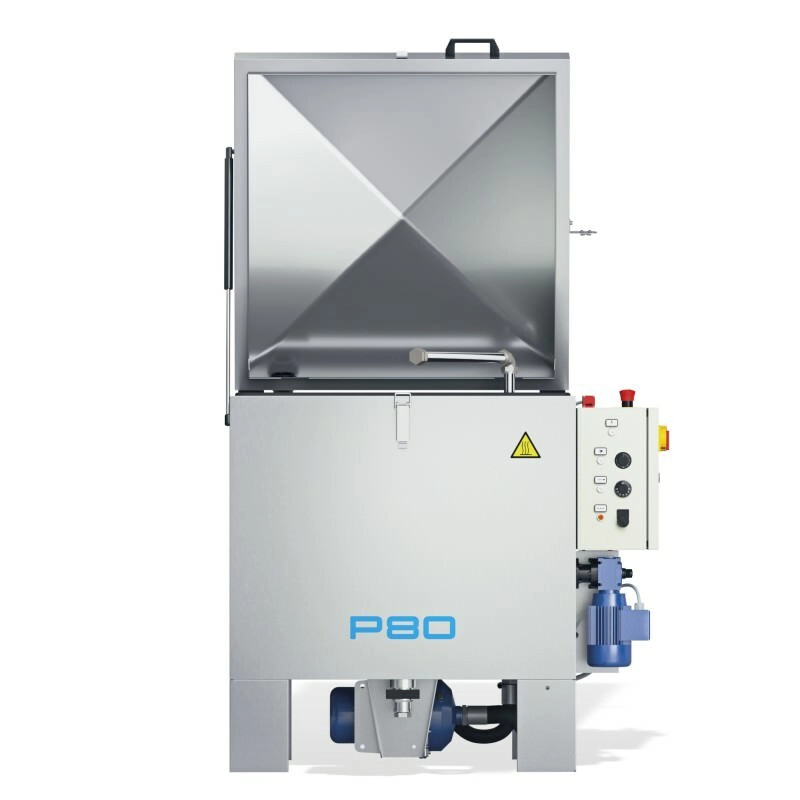

The P60 and P80 parts washers allow for the automatic washing of small and medium-sized parts. The operator places the parts to be washed inside a basket, closes the lid, and starts the cycle. The operator is thus free to do other things.
While the basket rotates slowly by means of a gear motor, the pump sucks the liquid contained in the tank and sprays it under pressure onto the parts from all sides. The washing liquid is composed of ecological soaps mixed at low concentration (3%) in water. From the control panel, it is possible to set the liquid temperature (max 60°C) and the washing time (0-30 minutes). The structure, the pump, and all washing pipes are in AISI 304 stainless steel.
Main operational benefits:
- Automatic washing of small and medium-sized components
- Rotating basket with movement via gear motor
- Upper, lower, and side jets for complete part coverage
- Liquid temperature regulation
- Direct setting of cycle duration
- Electromechanical control panel
Technical positioning:
- Automatic rotating basket metal washer
- Plant for industrial washing of mechanical components
- Electromechanically managed solution for production and maintenance departments
What can be added as an accessory
- Compressed air blowing (fixed time 3′) [B]
- Timed electric vapor extraction
- AISI 304 stainless steel basket
- Disc oil skimmer with integrated motorization
- Setup for the use of abrasive contaminants in the washing liquid
- Stainless steel fittings and valves in contact with the liquid (KIT FC)
- High-pressure washing pump
- Panels under basket with grease and solid collection well filters
- Upper ramp fixed to the lid
- Machine equipped with wheels for movement
- Tank emptying pump
ACCESSORIES LEGEND
B: panels under basket are mandatory (if present in the list for that model)

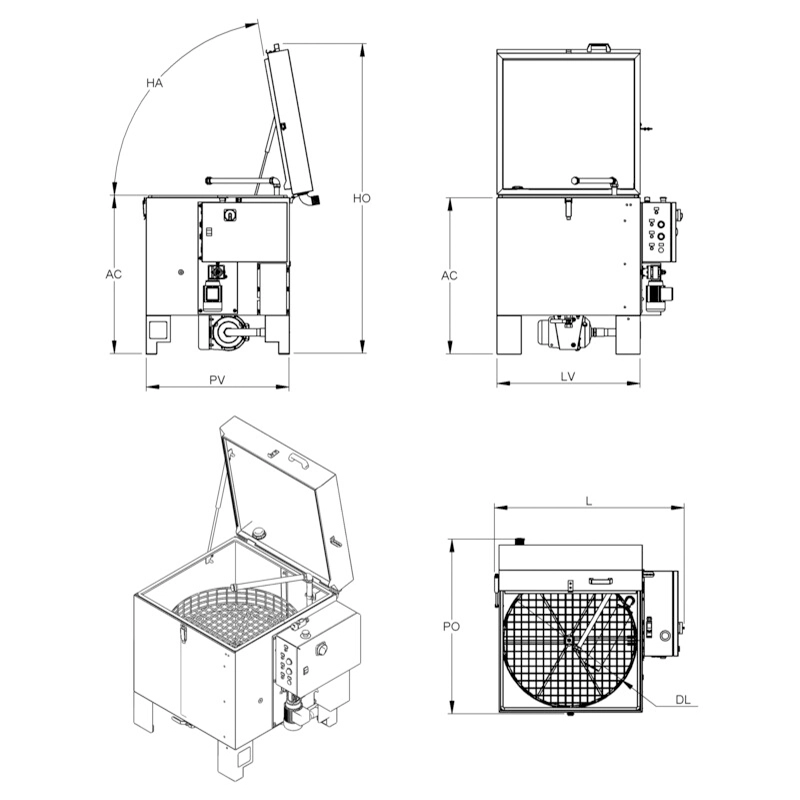

| Model | P60 | P80 | ||
|---|---|---|---|---|
| Height with machine open (HO) | 153 cm | 185 cm | ||
| Loading Height (AC) | 83 cm | 92 cm | ||
| Washing Height (HL) | 38 cm | 43 cm | ||
| Opening angle (HA) | 80° | 80° | ||
| Washing diameter (DL) | 58 cm | 78 cm | ||
| Width (W) | 92 cm | 112 cm | ||
| Tub width (LV) | 64 cm | 84 cm | ||
| Weight (W) | 85 kg | 96 kg | ||
| Open machine depth (PO) | 86 cm | 105 cm | ||
| Pool Depth (PV) | 64 cm | 84 cm | ||
| Noise LT (RU) | 75 dBa | 75 dBa |
