P MEDIUM
Automatic parts washer with rotating basket and electromechanical commands
Washing Area
Up to Ø 117 x H 70 cm
Loading Capacity
Up to 300 kg
Maximum Temperature
Up to 60 °C
Version
LT (heating up to 60° C)
Controls
Electromechanical
Tanks
Single tank
Power Supply
Three-phase
Detergent
SAX, CLEAN POWER, SAX Q, 545, ADD-SGX, SG233A, NEW 105, XL10, PROMETAL , PROTEK-IN, ADD-SGX, DROPAWAY, ASH, DEOXY, PUL-T
Features
Details
Accessories
Models
What is included in all P MEDIUM models
- Timed electric vapor extraction
- Reinforced basket in electro-welded mesh with galvanized steel outer edge
- Assisted door closure with gas springs and closing hook
- AISI 304 stainless steel filter on the pump suction
- Tank edge gasket
- Structure and sheets in contact with the liquid in AISI 304 stainless steel
- Minimum level control
- Safety limit switch on lid opening
- Stainless steel electric pump with special seals
- IP65 electrical system, electromechanical controls
- Liquid heating with stainless steel electric resistance
- Mechanical rotation of the basket via gear motor
- Internal weld bleaching
- Drain valves for tank emptying
- Manual valve for water filling
- Washing pipes in AISI 304 stainless steel with professional stainless steel blade nozzles

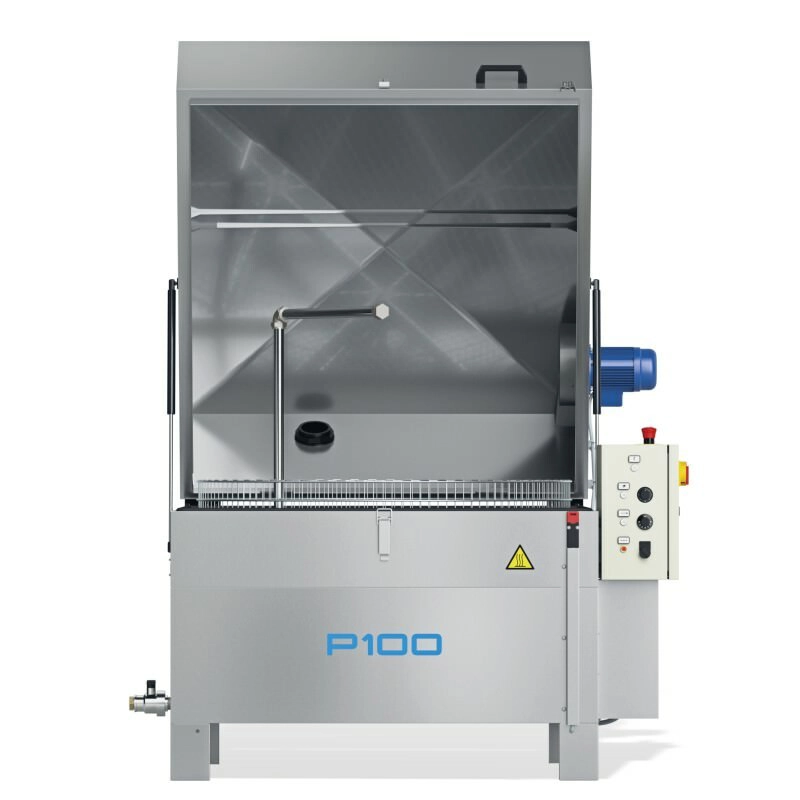

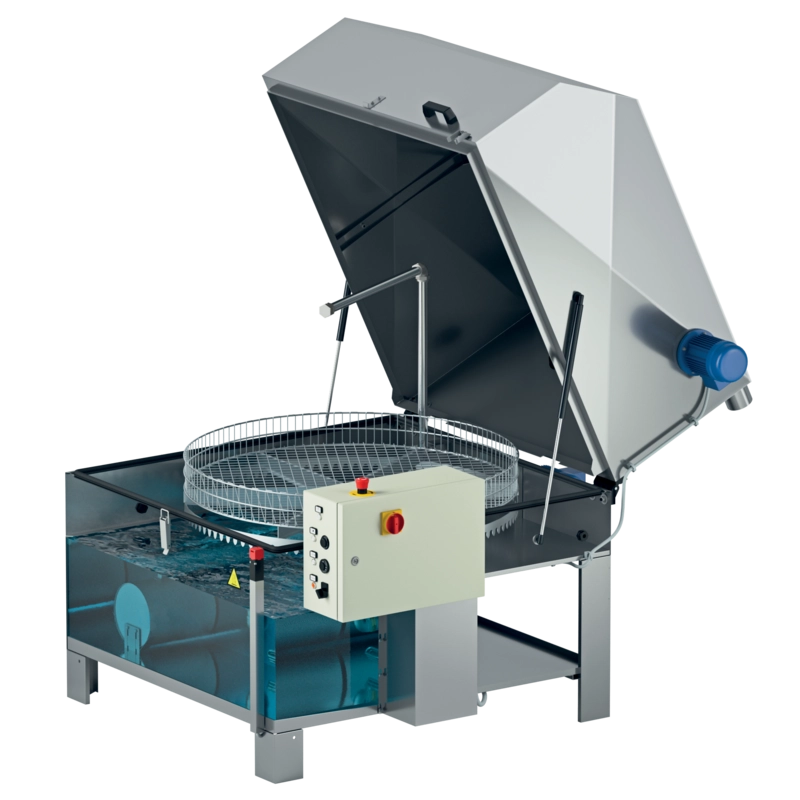

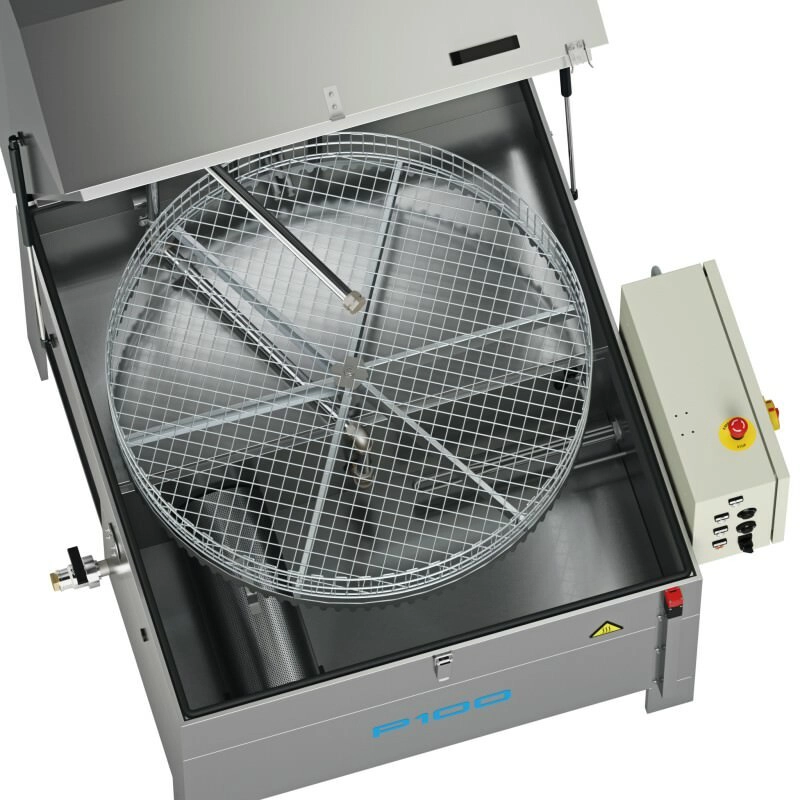

The P100 and P120 parts washers perform automatic washing of medium-sized parts. The operator places the parts to be washed inside a basket, closes the lid, and starts the cycle. The cycle takes place completely automatically, not requiring the presence of an operator. During the cycle, the basket rotates slowly by means of a gear motor and the pump sprays the detergent liquid under pressure onto the parts from the upper, lower, and side pipes. The washing liquid is composed of ecological soaps mixed in a low percentage in water. From the control panel, it is possible to set the liquid temperature (max 60°C) using a manual thermostat and, thanks to a timer, set the washing time (0-30 minutes). The structure, the pump, and all washing pipes are in AISI 304 stainless steel.
The P100 and P120 parts washers are equipped as standard with motorized suction to prevent the operator from being hit by steam when opening the lid.
Main operational benefits:
- Automatic washing of medium-sized components
- Rotating basket moved by gear motor
- Effective cleaning via upper, lower, and side jets
- Adjustable washing liquid temperature
- Cycle duration setting
- Electromechanical control panel
Technical positioning:
- Automatic rotating basket metal washer
- Solution for automatic washing of medium-sized mechanical parts.
- Electromechanically managed system for industrial use
What can be added as an accessory
- Compressed air blowing (fixed time 3′) [B]
- AISI 304 stainless steel basket
- Disc oil skimmer with independent motorization
- Setup for the use of abrasive contaminants in the washing liquid
- Stainless steel fittings and valves in contact with the liquid (KIT FC)
- High-pressure washing pump
- Panels under basket with grease and solid collection well filters
- Upper ramp fixed to the lid
- Machine equipped with wheels for movement
- Tank emptying pump
ACCESSORIES LEGEND
B: panels under basket are mandatory (if present in the list for that model)

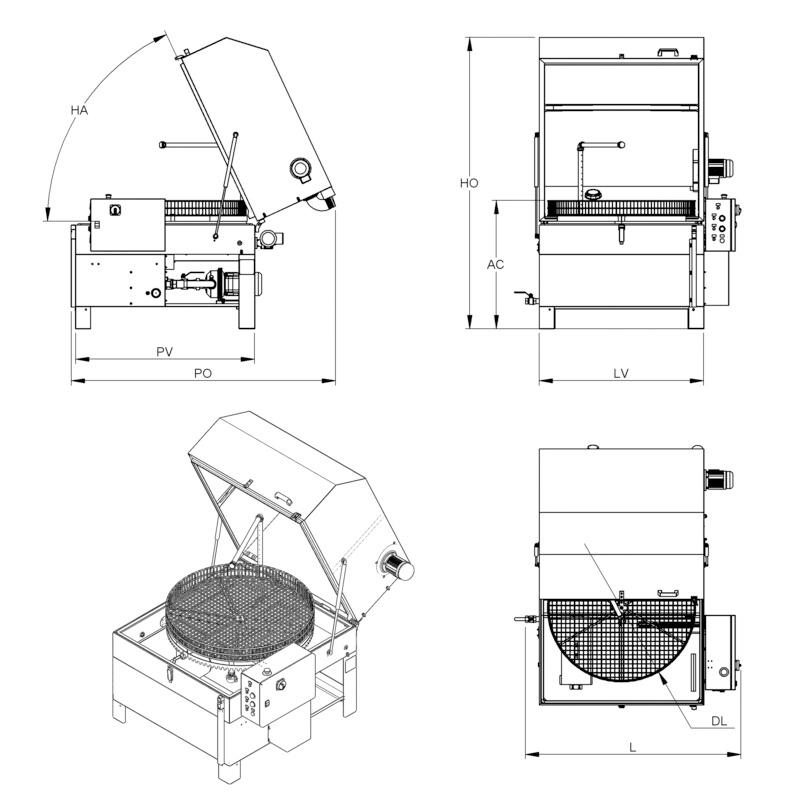

| Model | P100 | P120 | ||
|---|---|---|---|---|
| Height with machine open (HO) | 191 cm | 211 cm | ||
| Loading Height (AC) | 67 cm | 67 cm | ||
| Washing Height (HL) | 54 cm | 70 cm | ||
| Opening angle (HA) | 60° | 60° | ||
| Washing diameter (DL) | 97 cm | 117 cm | ||
| Width (W) | 146 cm | 166 cm | ||
| Tub width (LV) | 110 cm | 130 cm | ||
| Weight (W) | 168 kg | 202 kg | ||
| Open machine depth (PO) | 175 cm | 206 cm | ||
| Pool Depth (PV) | 120 cm | 135 cm | ||
| Noise LT (RU) | 75 dBa | 75 dBa |
