Pneumatic low-pressure metal washer with closed cabin and manual action

LAVAPEN P is the low-pressure pneumatic parts washer with a closed cabin, designed for the manual washing of small and medium-sized mechanical parts. The treatment is carried out manually by the operator using two gloves installed in the front part, which allow for direct intervention on the workpiece with total control. The effectiveness of the washing is guaranteed by a pump and a special spray nozzle that allow the treatment to be directed onto the surfaces to be cleaned. In the P configuration, the machine is powered exclusively by compressed air and is designed for the use of compatible solvents with a flash point higher than > 55°C.

Lavapen line

Request Information

Washing Area

Up to 120 x 80 x H45 c

Loading Capacity

70 kg

Maximum Temperature

Cold

Version

P (5 bar pressure, pneumatic)

Controls

Pneumatic

Tanks

Single tank up to 90 L

Power Supply

Pneumatic

Detergent

Novasol-c

Features

Details

Accessories

Models

What is included in all LAVAPEN P models

Assisted door closure with gas springs and closing hook
Neoprene gloves length 700 mm (excellent resistance to many chemical agents, oils, and solvents)
Tank edge gasket
Structure and sheets in contact with the liquid in AISI 304 stainless steel
Special washing lance with pressurized jet and non-slip grip
Safety limit switch on lid opening
Pedal-activated washing
Adjustable feet
Closing door with sleeves and tempered glass
Compressed air blowing gun
Manually adjustable washing pressure
Internal weld bleaching
Flexible pump suction and delivery pipes (easy maintenance)
Special ergonomic washing brush
Drain valves for tank emptying
Manual valve for surface liquid discharge (neat oil)

Lavapen parts washers allow manual washing of parts inside a closed and totally safe cabin.

The operator places the parts inside the machine, closes the lid, inserts their arms into the gloves, and by pressing a pedal activates the spray pump. Using the special spray nozzle with a non-slip grip, the operator is able to perfectly wash all holes and hidden parts of the workpieces.

There are 3 different machine sizes and 3 different types of operation available:

Version P: totally pneumatic for use with particularly aggressive products
Version C: electric power supply and water-based liquid heated to 60° and with a maximum washing pressure of 9 bar

Version X: electric power supply and water-based liquid heated to 60° and with washing pressure up to 100 bar
Lavapen parts washers can be equipped, on request, with an internal compressed air blowing gun.

Main operational benefits:

Direct manual washing in a closed cabin
Completely pneumatic operation
Use with solvents with flash point > 55°C
Dedicated pump for washing
Spray nozzle for targeted interventions
Pneumatic controls
Integrated single tank

Technical positioning:

Low-pressure pneumatic parts washer
Suitable for use with compatible solvents
Solution for controlled washing operations on mechanical parts

What can be added as an accessory

Stainless steel cartridge filter (10/25/50 micron)
Machine equipped with wheels for movement
Increased load capacity to 150 kg

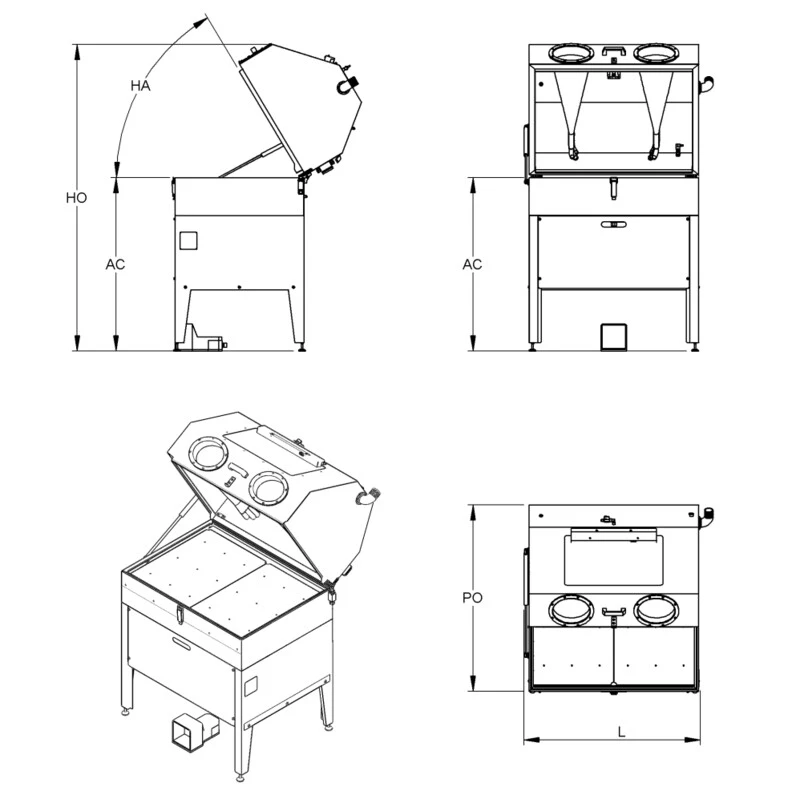

Model	LP3_P	LP4_P
Height (H)	160 cm	160 cm
Height with machine open (HO)	180 cm	190 cm
Loading Height (AC)	100 cm	100 cm
Washing Height (HL)	45 cm	45 cm
Opening Angle (HA)	60°	60°
Washing Area (AL)	95 x 70 cm	120 x 80 cm
Width (W)	117 cm	142 cm
Weight (W)	75 kg	90 kg
Depth (D)	85 cm	95 cm
Open machine depth (PO)	111 cm	120 cm
Noise HT (RU_HT)	75 dBa	75 dBa
