SIMPLEX BIG

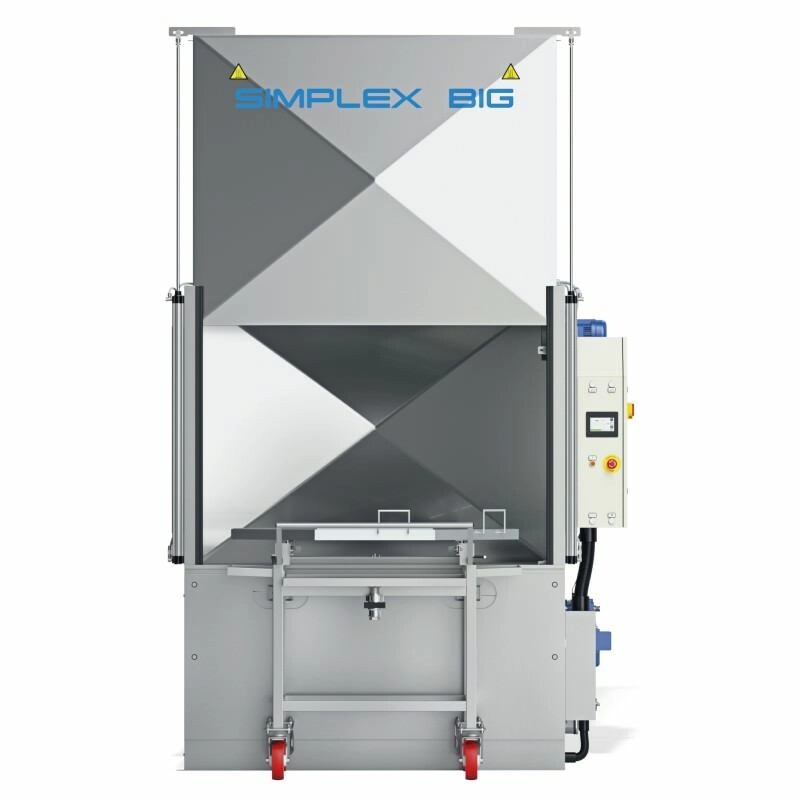

Automatic rotating-basket metal washer with plc and touchscreen
Washing Area
Up to Ø 240 x H 100 cm
Loading Capacity
Up to 800 kg
Maximum Temperature
Up to 80 °C
Version
LT (heating up to 60° C) - HT (heating up to 80° C)
Controls
PLC with Color Touchscreen, Industry 4.0 and 5.0 Option
Tanks
Single tank
Power Supply
Three-phase
Detergent
SAX, CLEAN POWER, SAX Q, 545, ADD-SGX, SG233A, NEW 105, XL10, PROMETAL, PROTEK-IN, ADD-SGX, DROPAWAY, ASH, DEOXY, PUL-T
Features
Details
Accessories
Models
What is included in all SIMPLEX BIG models
- Pneumatic opening and closing of the lid with 2-hand safety control
- Timed electric vapor extraction
- External trolley in AISI 304 stainless steel with drip tray and wheels with safety brake
- ISO pneumatic cylinders and pneumatic “anti-fall” safety valves
- Siemens® power electrical components
- 4″ color Touchscreen display for settings and programs
- AISI 304 stainless steel filter on the pump suction
- Triple door seal (lower, upper, and side)
- Structure and sheets in contact with the liquid in AISI 304 stainless steel
- Minimum level control
- Gear motor for basket rotation with torque limiter and centering sensor
- Tank thermal insulation with AISI 430 stainless steel panels
- Sludge drain hatch for simple tank cleaning
- Reinforced platform in pressed grating with raised outer edge in galvanized steel
- Stainless steel electric pump with special seals
- Weekly programming for heating ignition and oil skimmer (if installed)
- IP65 electrical system, managed with touchscreen PLC (DGT V4)
- Liquid heating with stainless steel electric resistance
- Internal weld bleaching
- Lower load-bearing structure in stainless steel
- Washing pipes in AISI 304 stainless steel with professional stainless steel blade nozzles
- Drain valves for tank emptying
- Manual valve for water filling
HT VERSION
- Thermal insulation with AISI 430 stainless steel panels

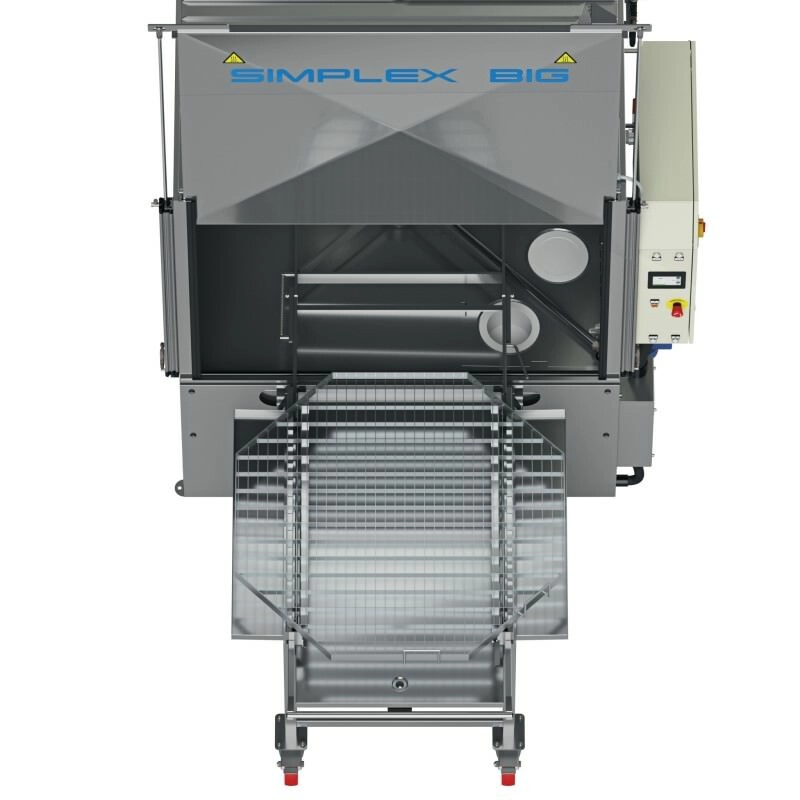

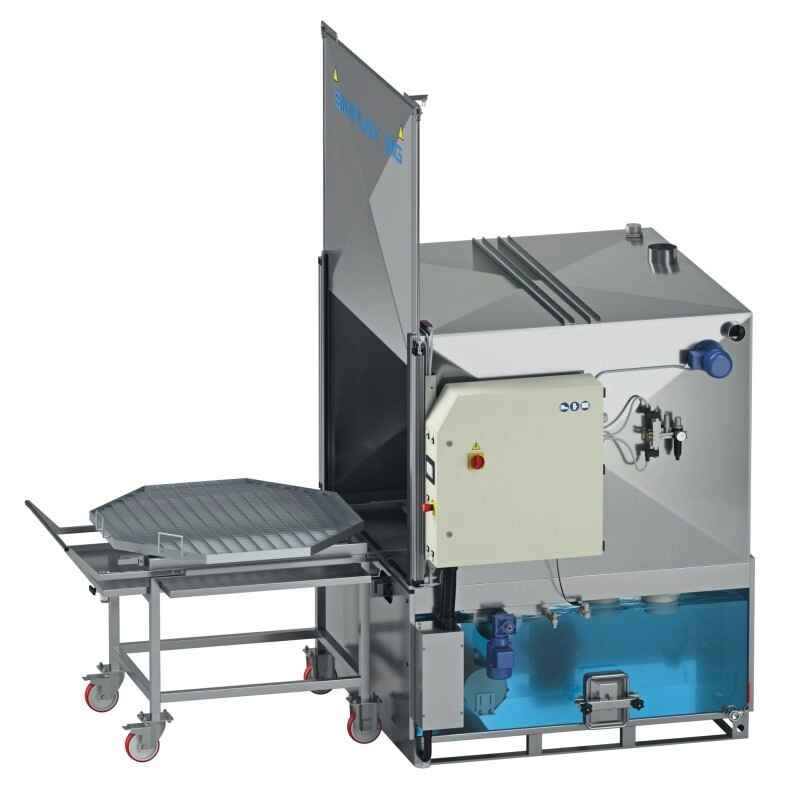

The parts washers of the Simplex Big range have been expressly designed for washing parts of medium and large dimensions and high weights. The Simplex Big parts washer is equipped with an external trolley on which the parts to be washed are deposited. Subsequently, the operator slides the platform containing the parts into the washing cabin, closes the vertical door by means of a two-hand control system, and starts the work cycle. Washing is performed by means of a horizontal stainless steel pump that sucks the liquid from the tank and sprays it onto the parts while the platform is rotated slowly by means of a gear motor.
The system is fully configurable thanks to the numerous accessories available and the work cycle is totally managed by an industrial PLC. On the color touchscreen mounted on the front of the machine, it is possible to modify work parameters such as, for example, the liquid temperature, set the heating on and off times, check the operation of each installed device, and modify the 16 available washing programs. Simplex Big parts washers are extremely robust and long-lasting, allowing operator times to be reduced while always guaranteeing excellent results with very low operating costs. Some available accessories are heating with gas or diesel burner, high-pressure pump, manual washing integrated into the machine, hot air drying.
Main operational benefits:
- Automatic washing of medium and large mechanical parts
- Upper, lower, and side jets for complete cleaning
- Slow rotation of the platform with gear motor and torque limiter
- PLC management with touchscreen for personalized programming
- Compatibility with various accessories and configurations upon request
- Easy integration into structured production lines
- 16 washing programs available
Technical positioning:
- Automatic metal washer for controlled cycles on large components
- Plant suitable for high-capacity industrial processes
- Configurable system for specific production needs
What can be added as an accessory
- Maximum liquid level control in tank 1 and filling solenoid valve
- Compressed air blowing [B]
- Drying with resistance and side channel blower with air blade [B]
- Load capacity increased by [QTY] x 100 kg
- Mixed resin demineralizer with conductivity meter
- Increased washing height
- Centrifugal vapor condenser S
- Centrifugal vapor condenser M
- Additional steel basket/platform
- Additional external trolley in AISI 304 stainless steel
- Automatic liquid detergent dispenser
- Disc oil skimmer with independent motorization
- External pneumatic oil skimmer
- Stainless steel bag filter
- Magnetic candle for bag filter for ferritic powder
- Device for remote connection and tele-assistance for Weintek HMI
- Industry 4.0 ready for Weintek HMI
- 80 bar manual washing with gun and gloves
- 8 bar manual washing with gun and gloves
- Setup for the use of abrasive contaminants in the washing liquid
- Stainless steel fittings and valves in contact with the liquid (KIT FC)
- Siemens S7 1200 PLC – Weintek touchscreen HMI
- High-pressure washing pump
- Insulated stainless steel roller shutter front door
- Platform and spokes in AISI 304 stainless steel
- Panels under basket with grease and solid collection well filters
- Heating with diesel/methane burner
- Drip collection retention tank in AISI 304 stainless steel
- Nebulized rinse from water mains and drain into the tank
- Compressed air blowing with height-adjustable upper pipe [B]
- Removable sides for grating, H200 mm, in stainless steel
- Tank emptying pump
- Signal tower for plant status identification
- External loading and unloading station (second platform included) [C]
- Industry 4.0 ready for Weintek HMI
- Industry 4.0 ready for Siemens PLC
- Industry 5.0 ready (Energy counter)
ACCESSORIES LEGEND
B: panels under basket are mandatory (if present in the list for that model)
C: useful washing height is reduced by 130 mm

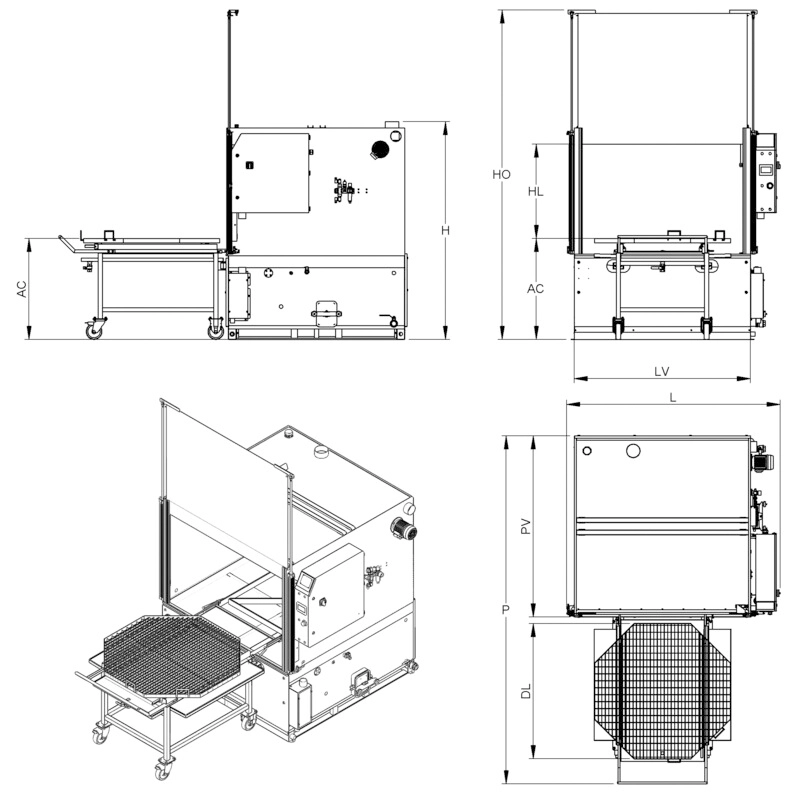

| Model | Washing Capacity (Ø x H) | Loading Capacity | Tank | |
|---|---|---|---|---|
| Simplex Big 1000 | Ø 90 x H 70 cm | 600 Kg | 280 lt | |
| Simplex Big 1200 | Ø 110 x H 80 cm | 600 Kg | 350 lt | |
| Simplex Big 1400 | Ø 128 x H 90 cm | 600 Kg | 500 lt | |
| Simplex Big 1800 | Ø 165 x H 100 cm | 800 Kg | 700 lt | |
| Simplex Big 2200 | Ø 200 x H 100 cm | 800 Kg | 1000 lt | |
| Simplex Big 2600 | Ø 240 x H 100 cm | 800 Kg | 1000 lt |
Application sector
Similar metal washers
Up to Ø 240 x H 100 cm
Up to 800 kg
Up to 80 °C
Up to Ø 225 x H 100 cm
Up to 800 kg
Up to 80 °C
Up to Ø 225 x H 100 cm
Up to 800 kg
Up to 80 °C
Up to Ø 225 x H 100 cm
Up to 800 kg
Up to 80 °C
Based on needs
Based on needs
Up to 80° C
