LINEARJET

Metal parts washer with mobile nozzle for bulky, very narrow and long parts

LINEARJET is a moving-jet parts washer designed to work on very narrow, long, or bulky parts when the shape of the workpieces does not allow for the use of washers with a circular platform. The plant is built to design on the customer’s specification and is equipped with automatic movement of the washing pipes. The operating principle provides that the parts remain stationary in a static position, while the spray pipes move around the workpieces. The upper, front, and rear pipes are moved by a motorized chain system, while the lower and side pipes are of the rotating type. Process management is entrusted to a PLC, which allows for wide customization possibilities, also thanks to the availability of a vast range of accessories.

Linearjet line

Request Information

Washing Area

Based on needs

Loading Capacity

Based on needs

Maximum Temperature

Up to 80° C

Version

LT (heating up to 60° C) - HT (heating up to 80° C)

Controls

PLC with Color Touchscreen, Industry 4.0 and 5.0 Option

Tanks

Single, double, triple tank

Power Supply

400V 3 PH 50 HZ

Detergent

CLEAN POWER, SAX Q, 545, ADD-SGX, SG233A , NEW 105, XL10, PROMETAL, PROTEK-IN, ADD-SGX, DROPAWAY, ASH, DETERFOS, DEOXY, PUL-T

Features

Details

Accessories

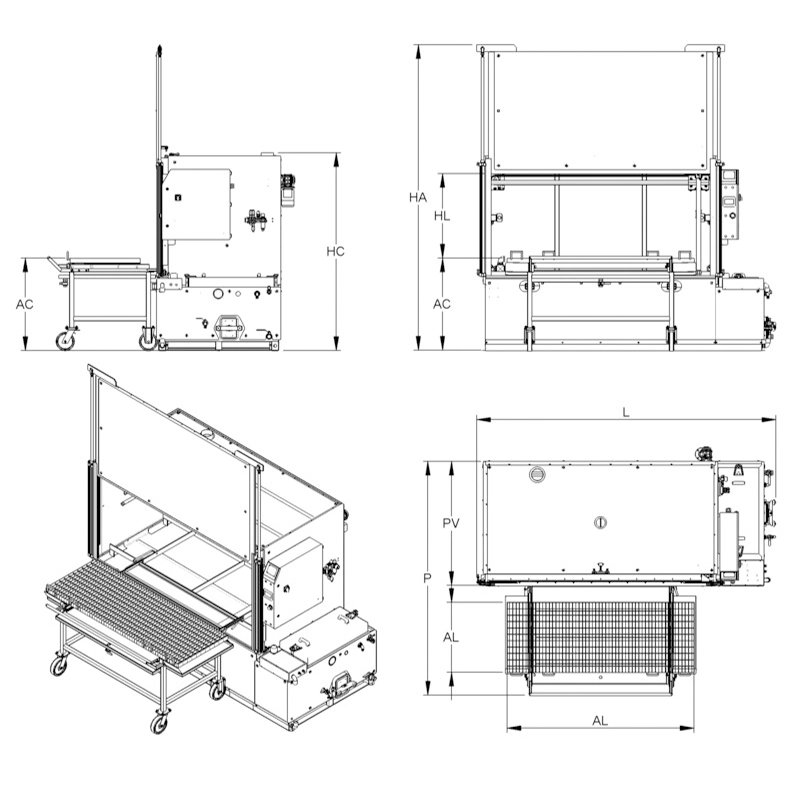

Models

Aisi 304 stainless steel filter in pump intake
AISI 304L stainless steel washing pipelines with professional stainless steel flat nozzles
Automatic calculation of electricity consumption in real time
Box filter
Color 7” touchscreen display for settings and programs
Drain valves for emptying tanks
Heating of the liquid with stainless steel electric heating element
HT Version
Internal ed external welding bleaching
IP55 main electrical box, management with touchscreen PLC (DGT V4)
ISO pneumatic cylinders and “fall-proof” pneumatic safety valves
Manual water filling valve
Minimum level switch
Movement of nozzle holding hoses on the entire washing area Pneumatic opening and closing of the lid with 2 safety hands control
Reinforced pressed grating platform
Safety limit switch on door opening
Siemens electric power parts
Stainless steel bottom section load-bearing structure
Stainless steel electric pump with special seals
Structure and sheet metal in contact with liquid in AISI 304L stainless steel Tanks accessible from the outside
Timed electric exhaustion of steam
Triple seal on the door
Weekly programming to start heating and deoiler (if installed)

Linearjet parts washers, so called because the movement of the washing pipes occurs linearly and not rotationally, are designed and configured based on the customer’s needs. These parts washers consist of a rectangular pressed grid platform on which the parts to be washed are placed. Inside the washing chamber, the parts are sprayed with detergent liquid through mobile jet-holding pipes moved along the longer side of the platform, by means of gear motors and chains. The lower part of the workpieces is in some cases washed by means of washing jets positioned on special rotating pipes. These parts washers can be configured with a double tank, complete insulation, hot air drying, and a motorized platform movement system

Main operational benefits:

Treatment of long, narrow, and bulky parts
Parts remain in a static position during washing
Mobile spray tubes with automatic movement
Plant designed to customer specifications
High level of customization via PLC
Adaptable configuration thanks to a wide choice of accessories
Industry 4.0 and 5.0 ready (optional)

Technical positioning:

Parts washer for complex geometries not compatible with circular platforms
Tailor-made solution for large components or longitudinal development
Configurable system based on application needs

Automatic chemical product dispenser, installed in bath 1
Bag filter in stainless steel, installed in the bath 1
Centrifugal steam condenser M [D]
Centrifugal steam condenser S [D]
Detergent suction tank for automatic dispenser
Device for remote connection and remote support for PLC Siemens
Device remote connection and remote support for HMI Weintek
Disc oil separator with dedicated motorization
Electrical board installed on the opposite side of the standard one
Emptying pump
External pneumatic oil separator with stainless steel floats
HMI Siemens KTP – Display (only for Siemens PLC)
Industry 5.0 Ready (Energy Meter)
Kit for Industry 4.0 for HMI Weintek
Kit for Industry 4.0 for PLC Siemens
Led light tower with 3 lights and sound alarm
Magnetic spark plug for bag filter size 2 for ferrite powder
Maximum liquid level control in tank 1 and filling solenoid valve
Mixed resin demineralizer M50 with conductivity meter
Motorised movement of the platform for loading and unloading with photocell barriers and perimeter protection equipment [F] Motorised movement of the platform for loading and unloading [F]
PLC Siemens S7 1200 – HMI touchscreen Weintek
