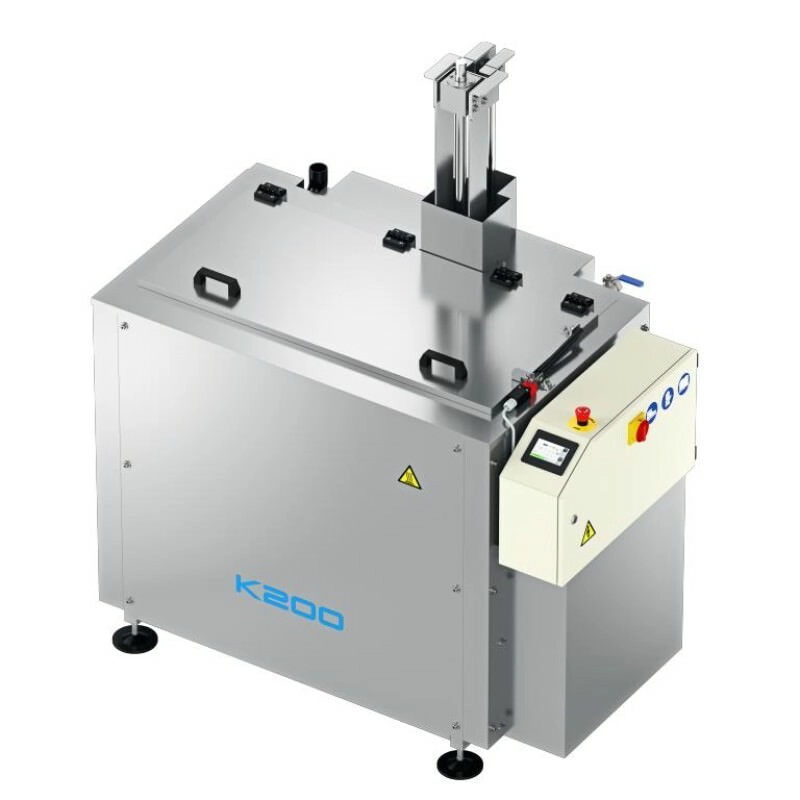

SERIE K
Ultrasonic metal washer for heavy and continuous use
Washing Area
Up to 125 x 65 x H55 cm
Loading Capacity
Up to 300 kg
Maximum Temperature
80 °C
Version
Standard with ultrasound generator and plate transducers
Controls
PLC with Color Touchscreen, Industry 4.0 and 5.0 Option
Tanks
Single tank + additional tank for oil collection
Power Supply
Three-phase
Detergent
CLEAN POWER, PROMETAL, PROTEK-IN, PAINTSTRIPPER A3 , PAINTSTRIPPER B1 CARK 211, DECARB SPECIAL, DECARB ULTRA, DEOXY, PUL-T
Features
Details
Accessories
Models
What is included in all SERIE K models
- Assisted door closure with gas springs and closing hook
- Siemens ® power electrical components
- 4″ color touchscreen display for settings and programs
- Filter on the pump suction
- Structure and sheets in contact with the liquid in AISI 304 stainless steel
- Minimum level control
- Safety limit switch on lid opening
- Automatic lifting and immersion platform
- Adjustable feet
- Recirculation pump for filtration and oil removal by skimming
- Compressed air blowing gun
- Tank thermal insulation with AISI 430 stainless steel panels
- Weekly programming for heating ignition and oil skimmer
- IP65 electrical system, managed with touchscreen PLC (DGT V4)
- Liquid heating with stainless steel electric resistance
- Internal weld bleaching
- Immersible ultrasound generator and transducers in stainless steel
- Drain valves for tank emptying
- Manual valve for water filling

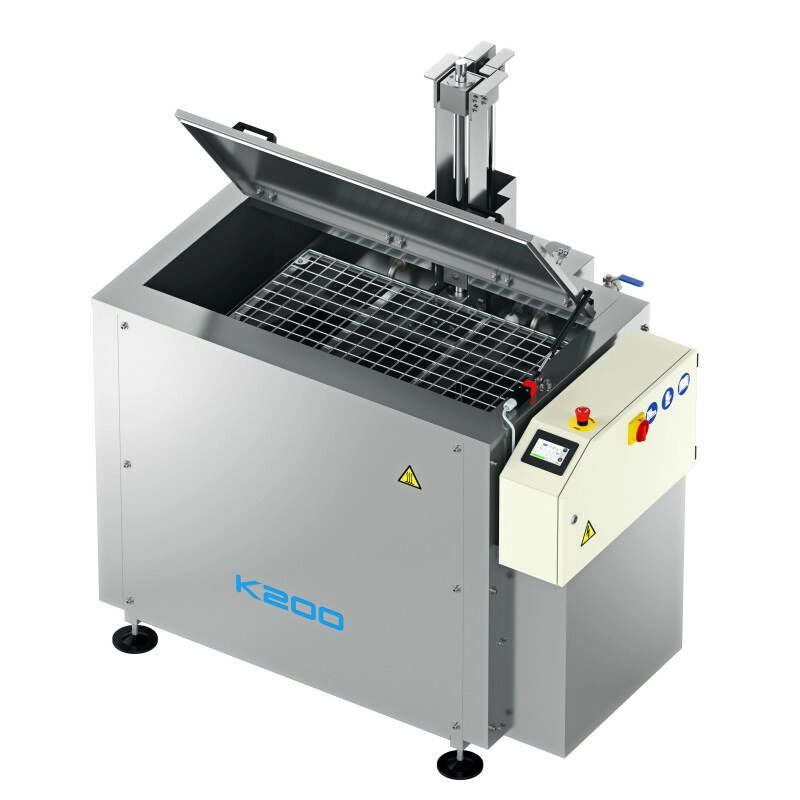

K series parts washers allow immersion washing of parts with the help of ultrasound. The machine is composed of a main tank containing the water-based detergent liquid. The platform on which the parts are deposited is automatically immersed in the liquid and thanks to the power of ultrasound the entire surface is completely washed. The automatic washing cycle, set by means of a Touchscreen panel, allows the operator not to be present during operation. At the end of the cycle, the platform returns to the emerged position so that the operator can remove the clean and degreased parts. Next to the washing tank, there is an additional tank where, due to the effect of a recirculation pump, the removed oils are made to flow. Furthermore, a filter allows the filtration of the liquid to remove small solid particles.
Main operational benefits:
- Powerful and uniform ultrasonic cleaning
- Suitable for heavy and continuous use
- Automatic mobile stainless steel platform
- Additional tank for oil collection and skimming
- Recirculation pump included
- PLC management with Industry 4.0 and 5.0 ready (optional)
Technical positioning:
- Ultrasonic metal washer for intensive industrial cycles
- Plant designed for heavy and continuous treatments
- Configurable system for structured production lines
What can be added as an accessory
- Maximum liquid control and filling solenoid valve
- Automatic liquid detergent dispenser, installed on bath 1
- Stainless steel cartridge filter
- Device for remote connection and tele-assistance for Weintek HMI
- Industry 4.0 ready for Weintek HMI
- Stainless steel fittings and valves in contact with the liquid (KIT FC)
- Siemens S7 1200 PLC – Weintek touchscreen HMI
- Heating with external resistors, not in contact with the liquid
- Machine equipped with wheels for movement
- Tank emptying pump (2)
- Signal tower for plant status identification
- Pneumatic opening and closing of the lid with 2-hand safety control
- Interface with loading and unloading system (Robot)
- Setup for the use of abrasive contaminants in the washing liquid
- Industry 4.0 ready for Weintek HMI
- Industry 4.0 ready for Siemens PLC
- Industry 5.0 ready (Energy counter)

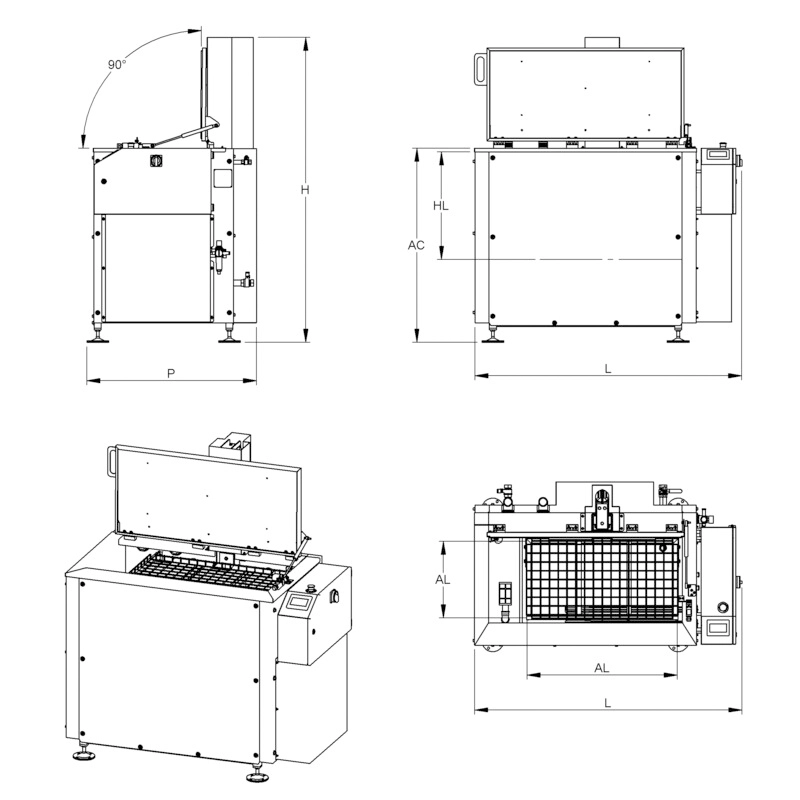

| Model | Washing Area (cm) | Ultrasound Power | Loading Capacity | Tank Capacity |
|---|---|---|---|---|
| K100 | 65 x 35 x H 34 | 1 kW | 100 Kg | 180 lt |
| K200 | 85 x 45 x H 38 | 2 kW | 100 Kg | 250 lt |
| K300 | 105 x 55 H 45 | 3 kW | 300 Kg | 520 lt |
| K500 | 125 x 65 x H 55 | 4 kW | 300 Kg | 700 lt |
