Booster: washing system with air agitation

For the treatment of medium or large components, BOOSTER represents the most reliable system for industrial immersion washing. A machine that is also advantageous for paint stripping and degreasing when power, uniformity, and process continuity are required. The BOOSTER plant uses an air agitation system that generates a hydrokinetic effect within the liquid: the continuous movement of the bath assists and accelerates the chemical process, improving the effectiveness of the treatment even on the most complex or heavy parts. Available in the HT version, the plant is equipped with insulation and allows for adjustable temperatures up to 80°C. These features make it particularly suitable for paint stripping and degreasing cycles that require thermal control and operational stability.

Booster line

Request Information

Washing Area

Up to 125 x 65 cm

Loading Capacity

Up to 400 kg

Maximum Temperature

Up to 80°C

Version

HT (heating up to 80° C)

Controls

PLC with color Touchscreen,Industry 4.0 and 5.0 Option

Tanks

Single tank

Power Supply

Three-phase 400 V

Detergent

CLEAN POWER, PAINTSTRIPPER A3, PAINTSTRIPPER B1, PUL-T

Features

Details

Accessories

Models

What is included in all BOOSTER models

Assisted lid closure with gas springs and closing hook
Tank thermal insulation
Siemens power electrical components
Minimum level control
“Booster” electric air turbulence generator
Lower part support grid in stainless steel
IP55 main electrical panel, managed with touchscreen PLC (DGT V4)
Heating with external resistors, not in contact with the liquid
Internal and external weld bleaching
Structure and sheets in contact with the liquid in AISI 304L stainless steel
Manual valve for water filling
Drain valves for tank emptying
HT Version

Teknox Booster is an immersion treatment plant ideal for parts of medium and large dimensions and weight. An air flow inside the liquid generates a hydrokinetic effect, optimizing and speeding up the chemical process of the bath. It is widely used in component paint stripping and degreasing. The HT (High Temperature) insulated version allows temperatures up to 80°C to be reached.

Main operational benefits:

Immersion treatment of medium and large components
Improved effectiveness of the chemical process thanks to air agitation
Acceleration of washing times for paint stripping and degreasing
HT version with heating up to 80°C
Solution suitable for production contexts requiring reliability and continuity

Technical positioning:

Immersion treatment plant with hydrokinetic agitation
Designed for industrial applications requiring washing power, thermal control, and heavy part management

What can be added as an accessory

Max liquid level control in tank 1 and filling solenoid valve
External pneumatic oil skimmer with stainless steel floats
Compact pneumatic oil skimmer
Remote connection and tele-assistance device for Weintek HMI
Remote connection and tele-assistance device for Siemens PLC
Automatic chemical product dispenser, installed on bath 1
Siemens KTP HMI – Display (only for Siemens PLC)
Automatic lifting and immersion platform with two-hand control
Siemens S7 1200 PLC – Weintek touchscreen HMI
Tank emptying pump
Industry 4.0 ready for Weintek HMI
Industry 4.0 ready for Siemens PLC
Industry 5.0 ready (Energy counter)
Stainless steel fittings and valves in contact with the liquid (KIT FC)
Detergent suction tank for automatic dispenser
AISI 304L stainless steel drip collection retention tank [D]
Industry 5.0 ready (Energy counter)

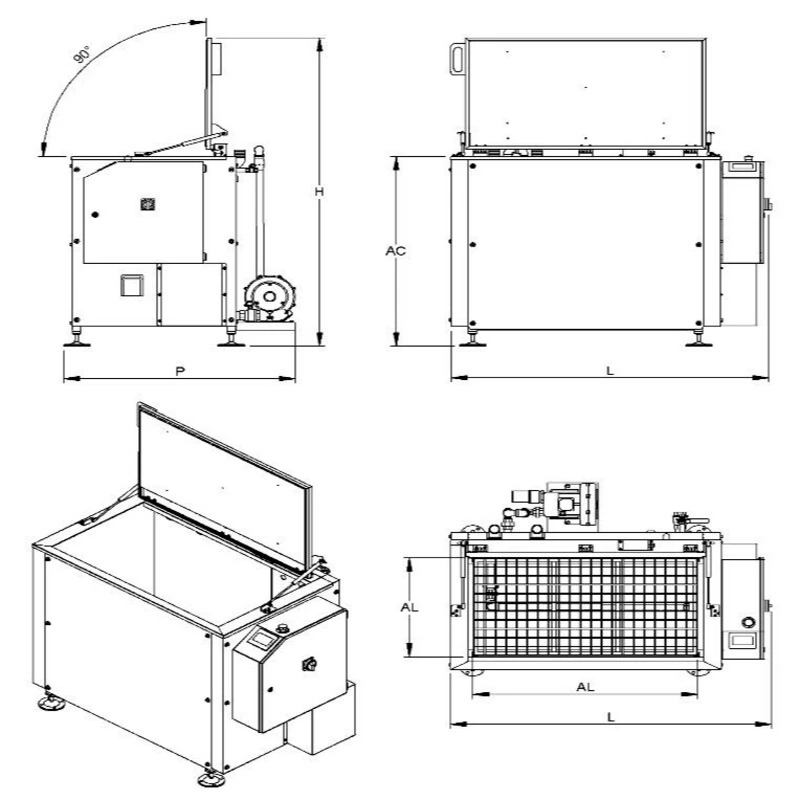

Model	BS_100	BS_200	BS_300	BS_500
Height (H)	175 cm	175 cm	200 cm	200 cm
Loading Height (AC)	100 cm	100 cm	100 cm	100 cm
Washing Height (HL)	40 cm	40 cm	45 cm	45 cm
Opening Angle (HA)	90°	90°	90°	90°
Washing Area (AL)	65 x 35 cm	85 x 45 cm	105 x 55 cm	125 x 65 cm
Width (W)	110 cm	130 cm	150 cm	170 cm
Depth (D)	80 cm	90 cm	100 cm	110 cm
Weight (W)	150 kg	200 kg	300 kg	400 kg
Noise HT (RU_HT)	70 dBa	70 dBa	70 dBa	70 dBa
